产品规格

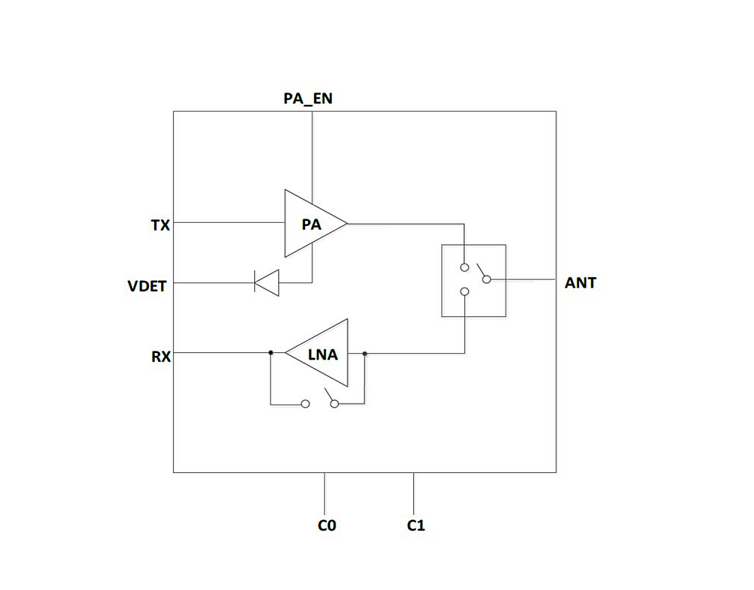

Integrated 802.11ax 5GHz PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 29dB at 5V

Receive gain: 16dB at 5V

Noise Figure: 1.6dB at 5V

Output power: +17dBm @ -43dB EVM, HE160/MCS11, 5V

                        +19dBm @ -40dB EVM, HE160/MCS11, 5V

                        +20.5dBm @ -35dB EVM, VHT80/MCS9, 5V

                        +21.5dBm @ -30dB EVM, HT20/MCS7, 5V

Integrated 2.4GHz Notch Filter

ESD protection circuitry on all PINs

Minimal external components required

Small package: MIS-16L 3mm x 3mm x0.55mm

MSL1, 260 oC per JEDEC J-STD-020

ROHS and REACH Compliant
