5GHz High Efficiency DPD FEM Solution

KCT8576N

5GHz High Efficiency DPD FEM Solution

产品介绍

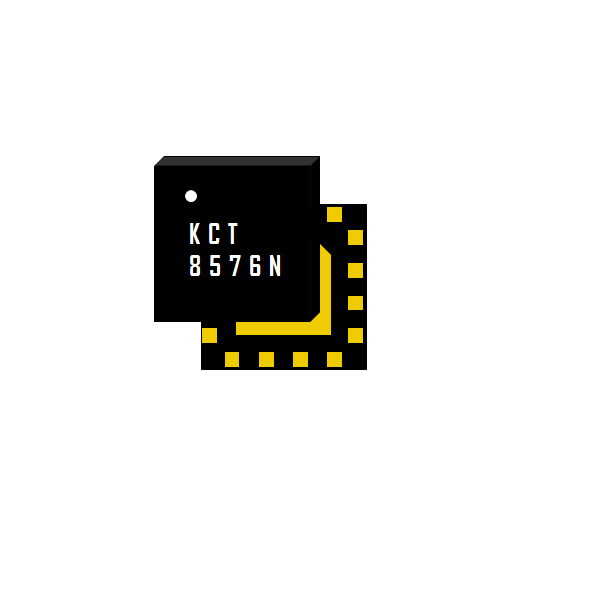

KCT8576N is a high-efficiency and linearizable front-end module for 802.11ax and operating in the 5.15-5.95GHz range. KCT8576N integrates a high-efficiency, high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.


KCT8576N has simple and low-voltage control logic, and requires simplified external components.


KCT8576N is assembled in a compact, low-profile 2.5x2.5x0.55mm 16-lead QFN package. KCT8576N is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.



产品规格

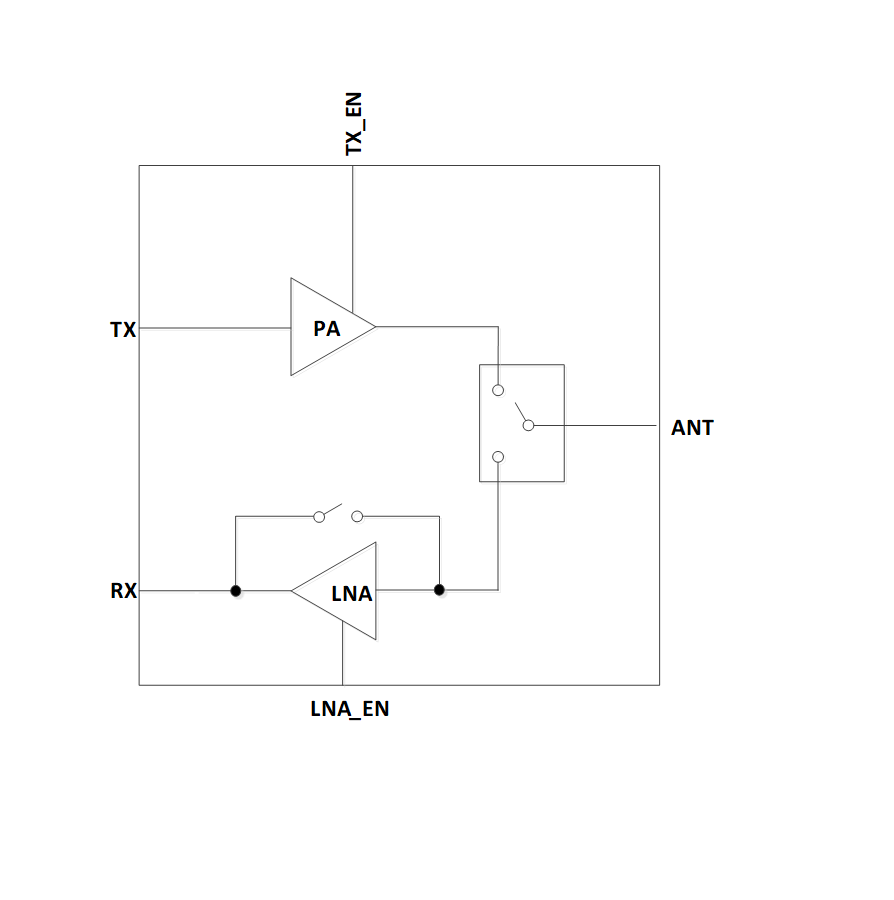

Integrated high performance 5GHz PA, LNA with bypass and T/R switch

Transmit gain: 30.5dB at 5V

Receive gain: 16.5dB at 5V

Noise Figure: 1.7dB at 5V

Output power: +18dBm    @ -43dB DEVM with DPD, HE160/MCS11, 5V

                         +20.5dBm @ -40dB DEVM with DPD, HE160/MCS11, 5V

                         +24dBm @ -35dB DEVM with DPD, VHT80/MCS9, 5V

                         +25dBm @ -30dB DEVM with DPD, HT20/MCS7, 5V

ESD protection circuitry on all PINs

Small package: QFN-16L, 2.5mm x 2.5mm x0.55mm (MSL3, 260°C per JEDEC J-STD-020)

RoHS and REACH compliant



5GHz High Efficiency DPD FEM Solution
