KCT8528HE-1

5GHz 802.11ax RF Front-End Module

产品介绍

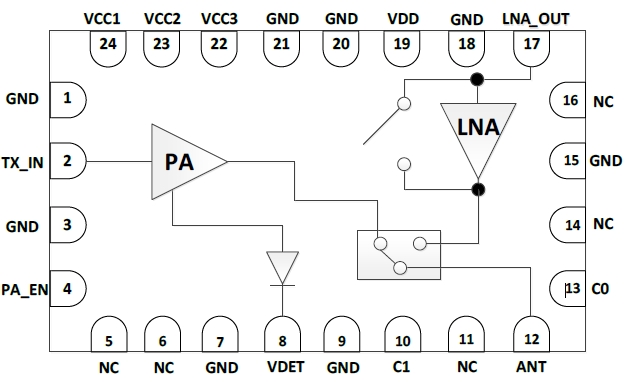

KCT8528HE-1 is a 5GHz RF Front-End Integrated Circuit which incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.85GHz range. KCT8528HE-1 integrates a high-efficiency, high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, a SPDT transmit/receive (T/R) switch and harmonic filters all in one device.



The LNA and PA disable functions ensure low leakage current while switched off. A power detector is also integrated to provide close-loop power control within the system.

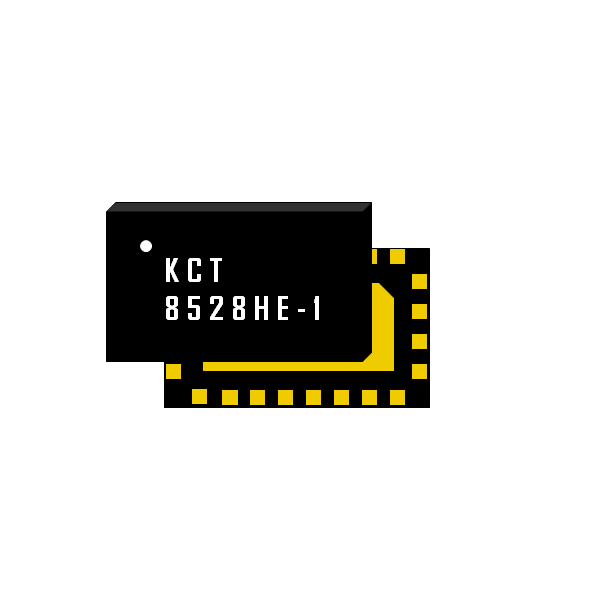

KCT8528HE-1 is assembled in a compact, low-profile 3x5x0.75mm 24-pin QFN package. KCT8528HE-1 is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11ax.
