KCT8778HT

6GHz 802.11be RF Front-End Module

产品介绍

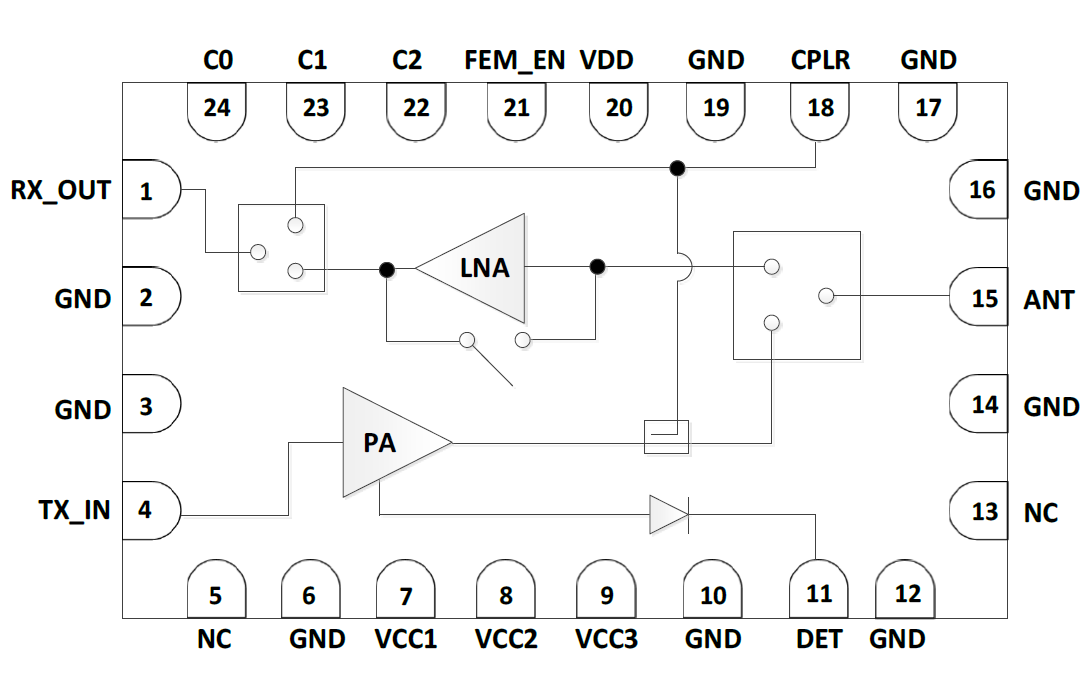

KCT8778HT is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax/be WLAN systems operating in the 5.9-7.1GHz range. KCT8778HT integrates a high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and harmonic filters all in one device.



KCT8778HT is a 5V supply voltage power amplifier that conserves power consumption while maintaining the highest linear output power and excellent throughput. A DC voltage output power detector and a directional RF coupler are integrated to support closed-loop power control within the system.

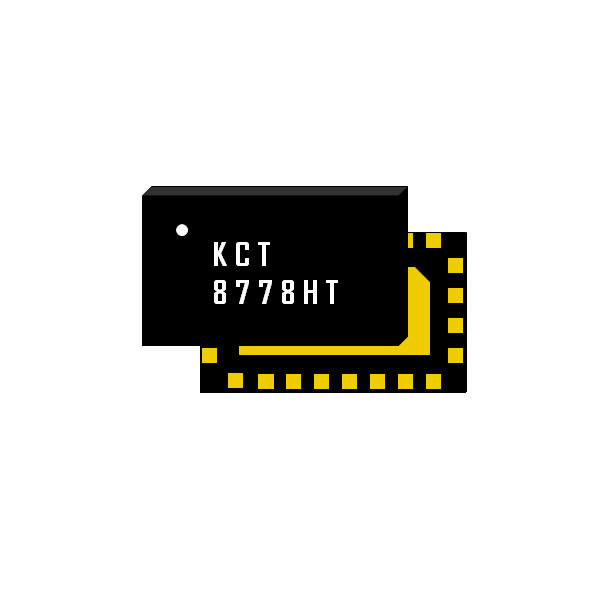

KCT8778HT is assembled in a compact, low-profile 3x5x0.812mm 24-lead LGA package, which is an ideal RF front-end solution for implementing 6GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax/be.
