5GHz Wi-Fi 5 Mid-High Power RF Power Amplifier

KCT6526H

5GHz Wi-Fi 5 Mid-High Power RF Power Amplifier

Introduction

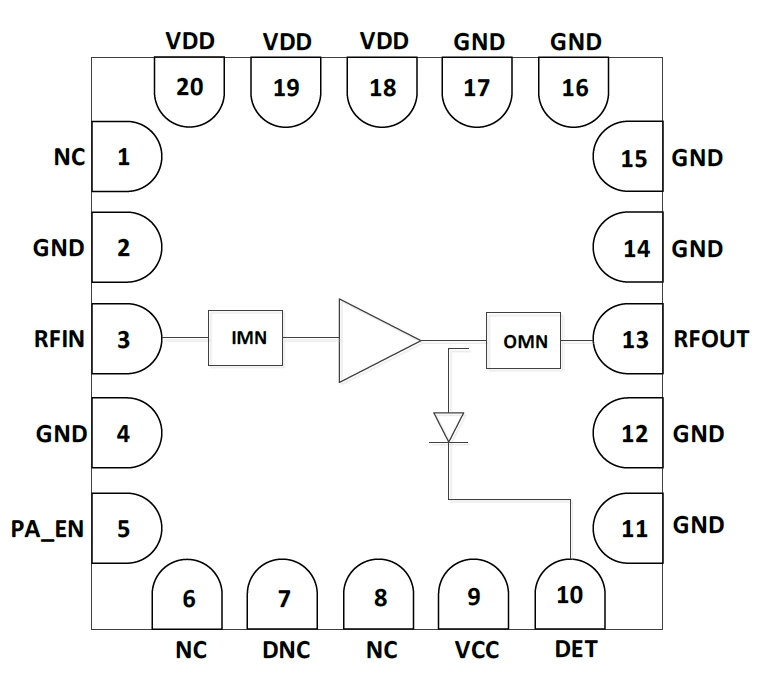

KCT6526H is a 5GHz Power Amplifier (PA) with superior output power, high efficiency and high linearity. The device incorporates a power detector for close loop monitoring of the output power, and a digital control for device on/off control.


KCT6526H has simple and low-voltage control logic, and requires simplified external components for system implementation.

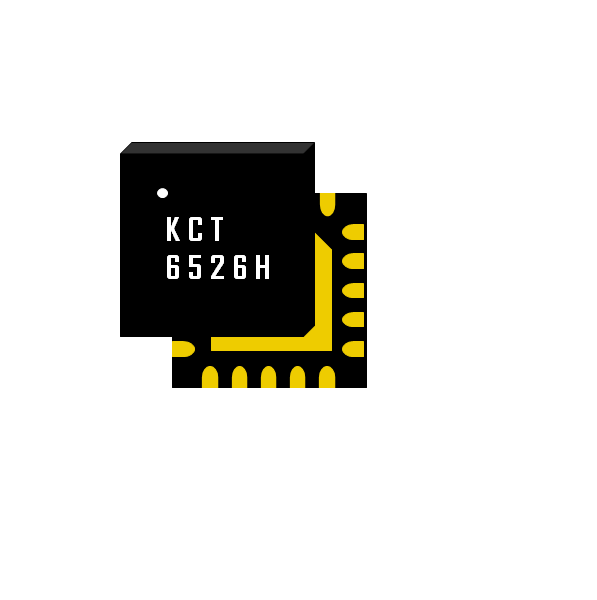

KCT6526H is assembled in a compact, low-profile 4*4*0.75mm 20-pin QFN package. It is the ideal PA solution for implementing 5GHz high power WLAN systems supporting multiple standards including 802.11b/g/n/ac.


Specifications

Integrated high performance 5GHz PA for WLAN 11a/n/ac

Fully-matched input and output

Integrated power detector

Transmit gain: 32.5dB at 5V

Output power: +22.5dBm @ 1.8% DEVM, VHT80/MCS9, 5V

                        +24dBm @ 3% DEVM, HT20/MCS7, 5V

ESD protection circuitry on all PINs

Simplified external components required

Small package: QFN-20L 4mm x 4mm x0.75mm

MSL3, 260°C per JEDEC J-STD-020

ROHS and REACH Compliant
