5GHz 802.11be RF Front-End Module


5GHz 802.11be RF Front-End Module

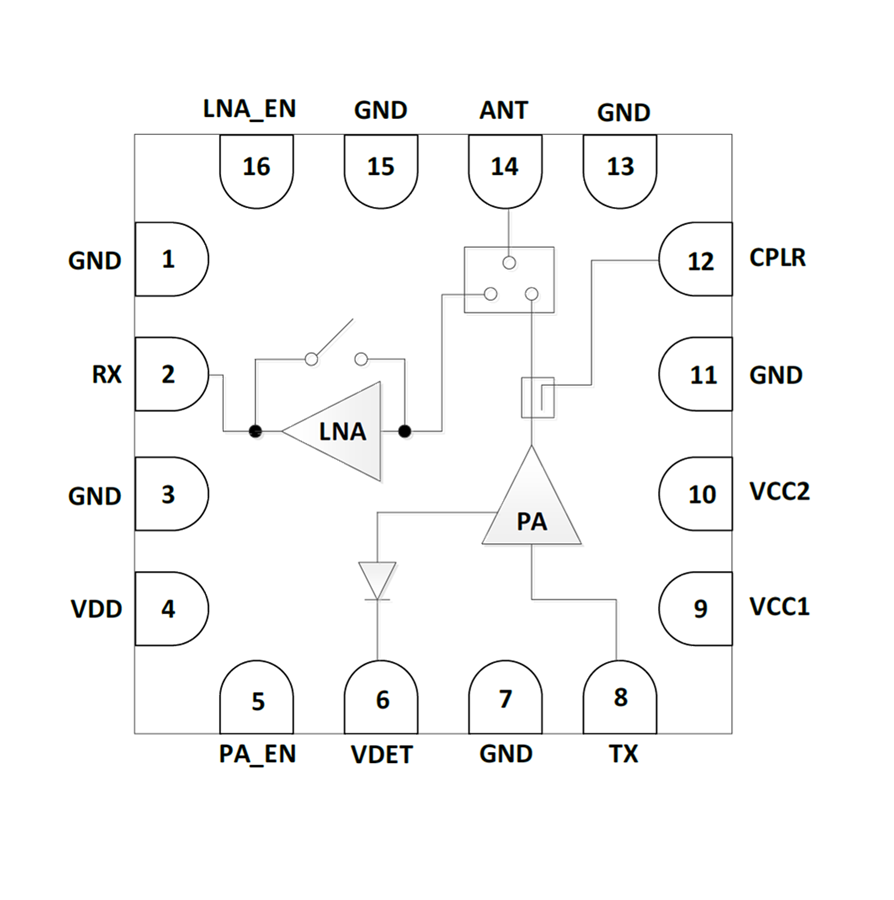

KCT8570HT is a highly integrated RF front-end integrated circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax/be WLAN systems operating in the 5.15-5.925GHz range. It integrates a high-efficiency, high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.


KCT8570HT is a 5V supply voltage power amplifier that conserves power consumption while maintaining the highest linear output power and excellent throughput. A DC voltage output power detector and a directional RF coupler are integrated to support closed-loop power control within the system.

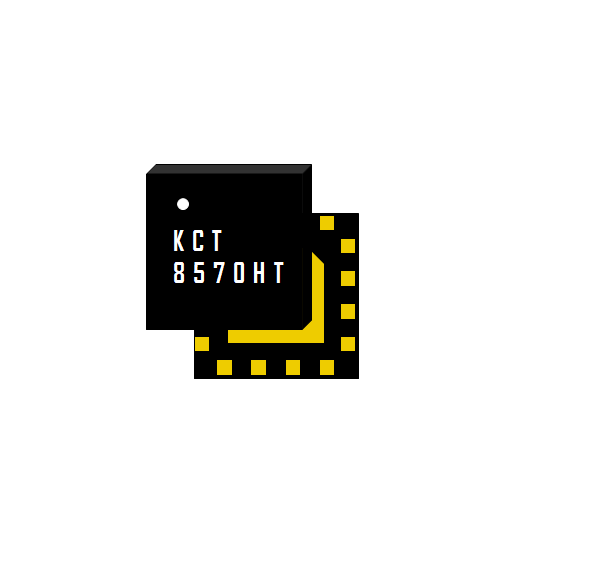

KCT8570HT is assembled in a compact, low-profile 3x3x0.75mm 16-lead QFN package, which is an ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax/be.


Integrated 802.11be 5GHz PA, LNA with bypass and T/R switch

Integrated RF & DC power detector

Transmit gain: 31.0dB at 5V

Receive gain: 16.5dB at 5V

Noise figure: 1.8dB at 5V

Output power:

+18.0dBm @ -45dB DEVM, EHT160/MCS13, 5V

+20.5dBm @ -43dB DEVM, HE160/MCS11, 5V

+21.5dBm @ -40dB DEVM, HE160/MCS11, 5V

+23.0dBm @ -35dB DEVM, VHT80/MCS9, 5V

+24.0dBm @ -30dB DEVM, HT20/MCS7, 5V

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-16L 3mm x 3mm x 0.75mm (MSL3, 260 per JEDEC J-STD-020)

RoHS and REACH Compliant
