5GHz Mid-High Power 802.11ax RF Front-end Module

KCT8575HE

5GHz Mid-High Power 802.11ax RF Front-end Module

Introduction

KCT8575HE is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.85GHz range. KCT8575HE integrates a high-efficiency high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, LO rejection, and harmonic filters all in one device.


KCT8575HE has simple and low-voltage control logic, and requires minimal external components. A power detector is also integrated for accurate monitoring of output power from the PA.

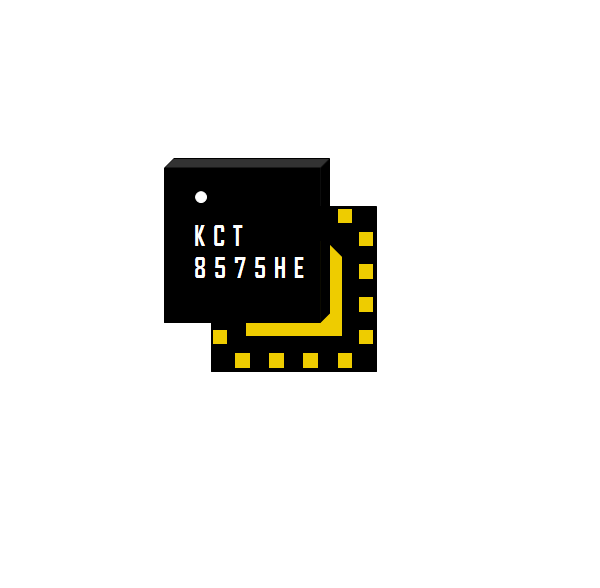

KCT8575HE is assembled in a compact, low-profile 3x3x0.57mm 16-lead MIS package. KCT8575HE is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.


Specifications

Integrated 802.11ax 5GHz PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 32dB at 5V

Receive gain:16.5dB at 5V

Noise Figure: 1.7dB at 5V

Output power: +21.5dBm @-40dB DEVM, HE160//MCS11, 5V

                       +23.0dBm @-35dB DEVM, VHT80/MCS9, 5V

                       +24.0dBm @-30dB DEVM, HT20/MCS7, 5V

ESD protection circuitry on all PINs

Minimal external components required

Small package: MIS16-pin, 3mm x 3mm x0.57mm

MSL3, 260 °C per JEDEC J-STD-020

ROHS and REACH Compliant
