5GHz High Power  802.11ax RF Front-end Module

KCT8548HE

5GHz High Power 802.11ax RF Front-end Module

Introduction

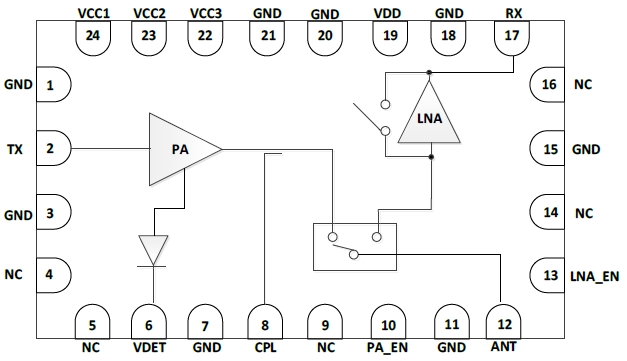

KCT8548HE is a highly integrated RF front-end integrated circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.85GHz range. It integrates a high-efficiency, high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, LO rejection, and harmonic filters all in one device.


 A power detector is integrated on KCT8548HE for accurately monitoring of output power from the PA. KCT8548HE is a 5V supply voltage power amplifier that conserves power consumption while maintaining the highest linear output power and excellent throughput. The PA power detector and a digital enable control are also integrated. A coupler function is integrated to further improve the linearity of the FEM.

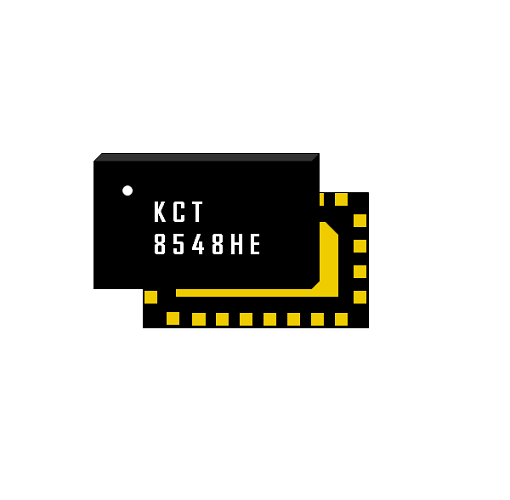

KCT8548HE is assembled in a compact, low-profile 3 x 5 x 0.75mm 24-lead QFN package, which is an ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.


Specifications

Integrated high performance 5GHz PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 30.5dB

Output power:  +16.5dBm @-43dB HE160, MCS11 DEVM, 5V

                         +21dBm @-40dB HE160, MCS11 DEVM, 5V

                         +23dBm @-35dB VHT80, MCS9 DEVM, 5V

                         +24dBm @-30dB HT20, MCS7 DEVM, 5V

Receive gain: 16dB

Noise Figure: 1.9dB

ESD protection circuitry on all PINs

Minimal external components required

Small package: QFN-24L, 3mm x 5mm x0.75mm

MSL3, 260°C per JEDEC J-STD-020

RoHS and REACH compliant
