KCT8575HE-1

5GHz 802.11ax RF Front-End Module

Introduction

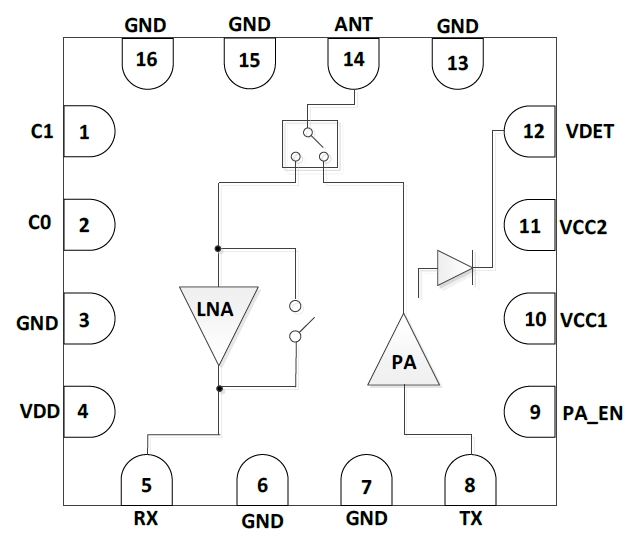

KCT8575HE-1 is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.925GHz range. KCT8575HE-1 integrates a high-efficiency high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.



KCT8575HE-1 has simple and low-voltage control logic and requires minimal external components. A power detector is also integrated to accurately monitor the output power of the PA.



KCT8575HE-1 is assembled in a compact, low-profile 3x3x0.57mm 16-lead MIS package. KCT8575HE-1 is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.
