Nonlinearity 2.4GHz Wi-Fi 6 FEM

KCT8270N

Nonlinearity 2.4GHz Wi-Fi 6 FEM

Introduction

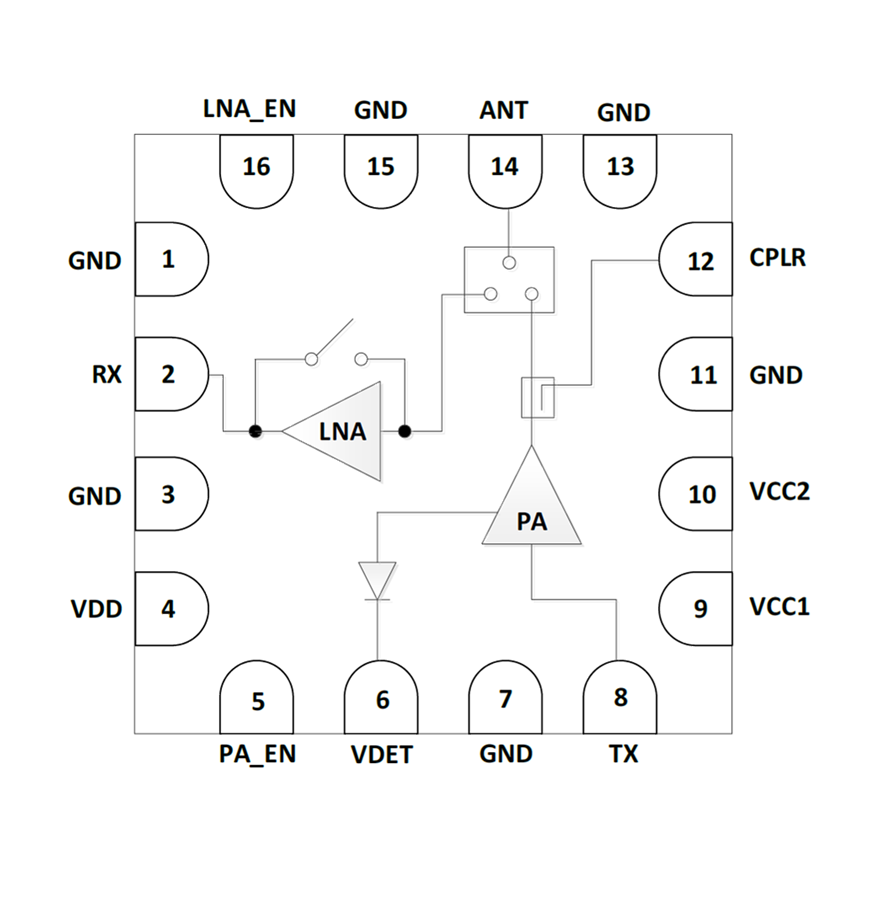

KCT8270N is a fully integrated 802.11b/g/n/ac/ax WLAN RF front-end module (FEM) which incorporates key RF functionality, it is integrated with a highefficiency power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and a single-pole, double-throw (SPDT) switch all in one device.


KCT8270N is a 5V supply voltage power amplifier that conserves power consumption while remain the highest linear output power and excellent throughput. The PA power detector and a digital enable control are also integrated. A coupler function is integrated to further improve the linearity of the FEM.


KCT8270N is assembled in a compact, low-profile 3*3*0.76mm 16-pin LGA package. It is the perfect RF front-end solution for implementing 2.4GHz high performance WLAN systems supporting multiple standards.


Specifications

Integrated high performance 2.4GHz PA, LNA with bypass, and T/R switch

Fully-matched input and output

Nominal voltage: 5V

Transmit gain: 30dB

Output power: +21.5dBm @ DEVM=-43dB with DPD, HE40/MCS11

                         +22dBm @ DEVM=-40dB with DPD, HE40/MCS11

                         +22.5dBm @ DEVM=-35dB with DPD, VHT40/MCS9

                         +23.5dBm @ DEVM=-30dB with DPD, HT20/MCS7

Receive gain: 14.5dB

Noise figure: 1.5dB

ESD protection circuitry on all PINs

Minimal external components required

Small package: LGA16-pin, 3 x 3 x 0.76mm (MSL3, 260°C per JEDEC J-STD-020)

RoHS and REACH compliant
